2005TX

    270.80 270.80 270.8 USD

    270.80

    This combination does not exist.

    Add to Cart
    Related Documents:

    5-Port Industrial Unmanaged Ethernet Switch, 5x10/100/1000BaseT(X) RJ45, DIN Rail, 12/24/48VDC(10 to 60VDC) &24VAC (18 to 30VAC) single power input, -40°C to +75°C


    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

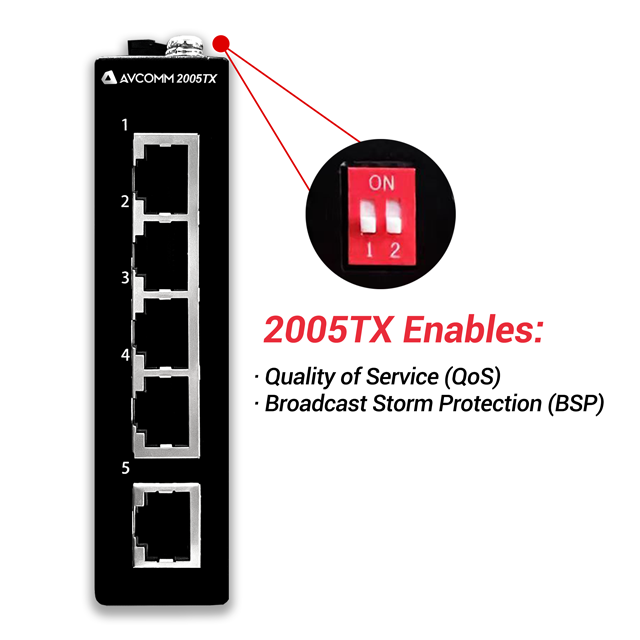

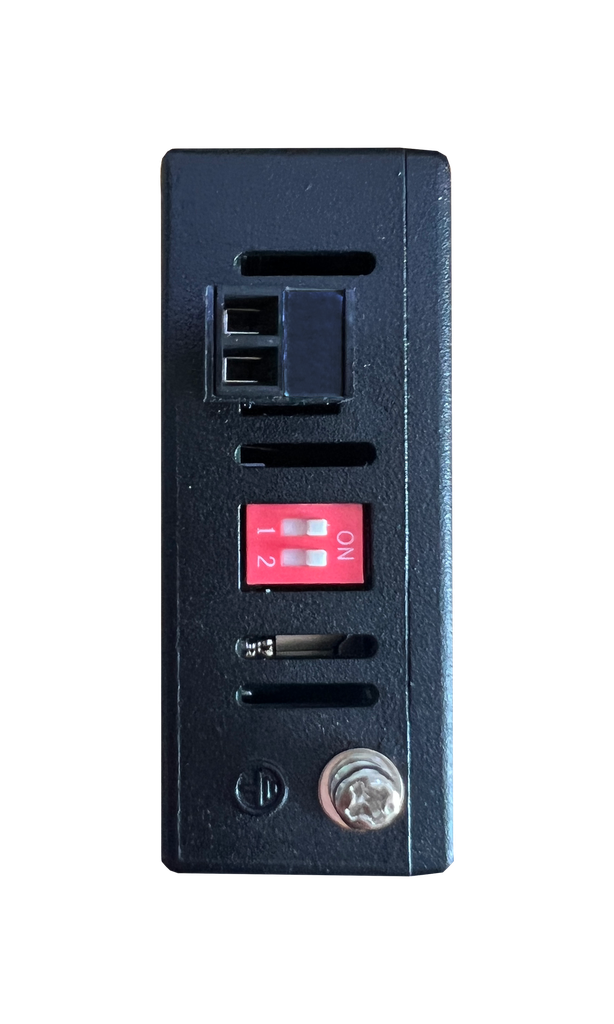

    2005TX have 5-10/100/1000BaseT(X) RJ45 ports, which are ideal for  applications that require simple industrial Ethernet connections. To provide greater versatility for use with  applications from different industries, the 2005TX also allows users to enable or disable the Quality of  Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, 2005TX has a rugged metal housing to ensure suitability for use in industrial. 2005TX has a 12/24/48 VDC & 24VAC single power input, DIN-rail mounting, and high-level  EMI/EMC capability. In addition to its compact size, 2005TX has passed a 100% burn-in test to en−  sure it will function reliably after it has been deployed.

    Product Features:
    Fast Ethernet Switching
    ・ Five(5) 10/100/1000BaseT(X) RJ-45 ports
    ・4K MAC address table
    ・Store and forward
    IEEE 802.3u EEE Power Management
    ・Ultra low power design, 5W when full loading
    ・Energy Efficient Ethernet for low power requirement・Idle power saving mode for energy efficiency
    Rugged Mechanical Design
    ・Robust design protects from mechanical deformation
    ・IP30 ingress protection to withstand harsh environment
    ・Wide operating temperature range -40°C ~ +75°C
    ・IEC61000-6-2/IEC61000-6-4 heavy industrial EMS
    Power protection
    ・Provide overload protection
    ・Provide reverse connection protection
    ・Provide DC&AC  power input
